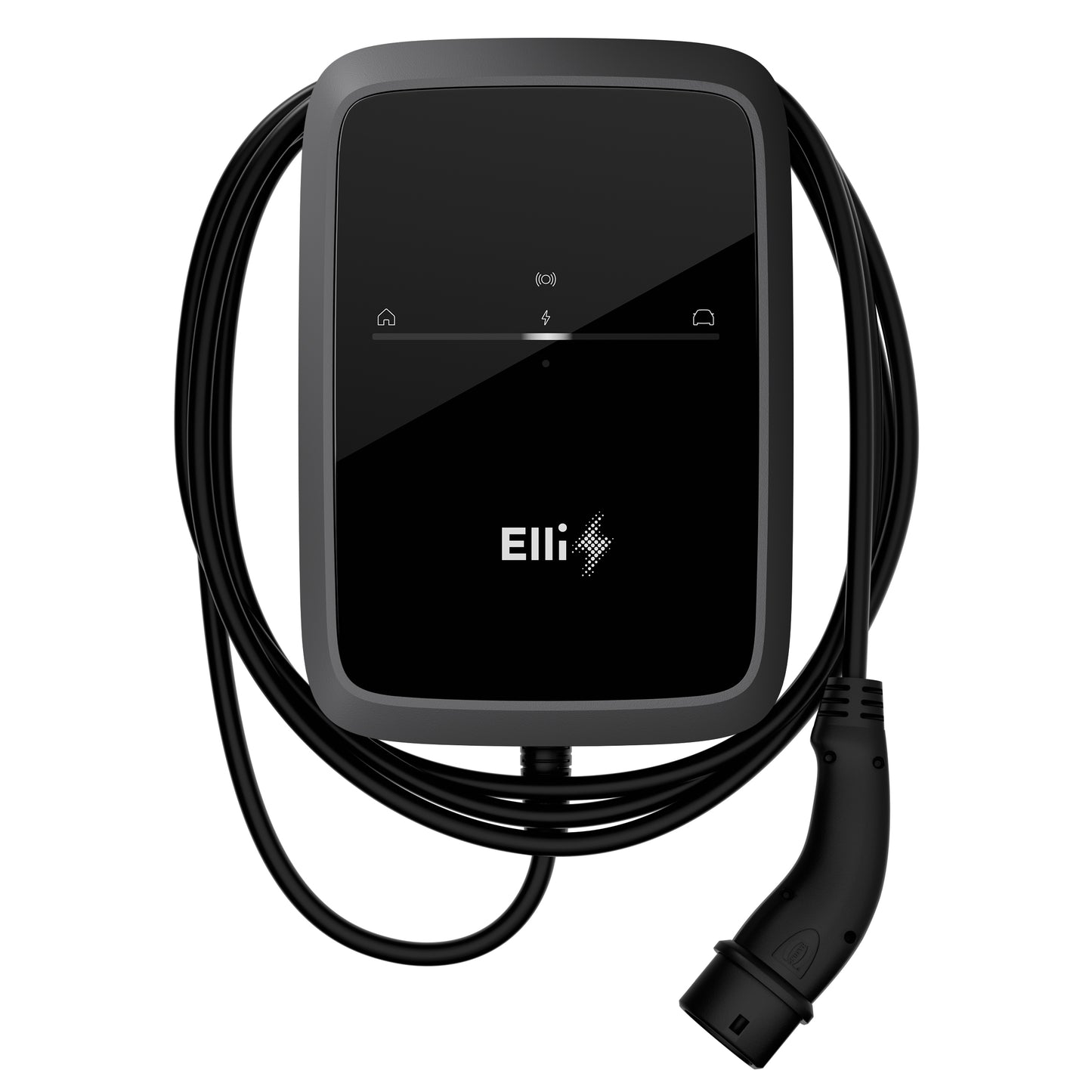

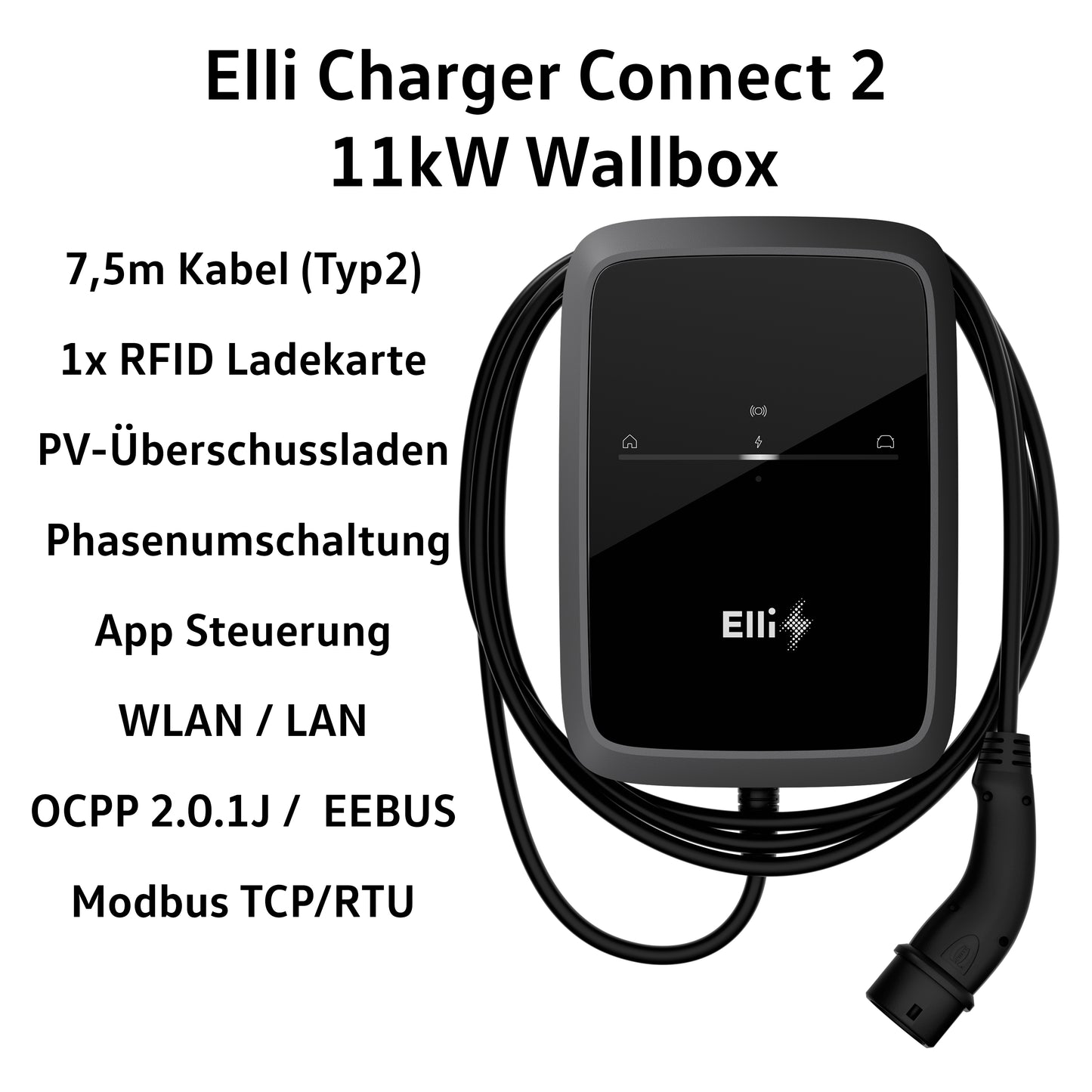

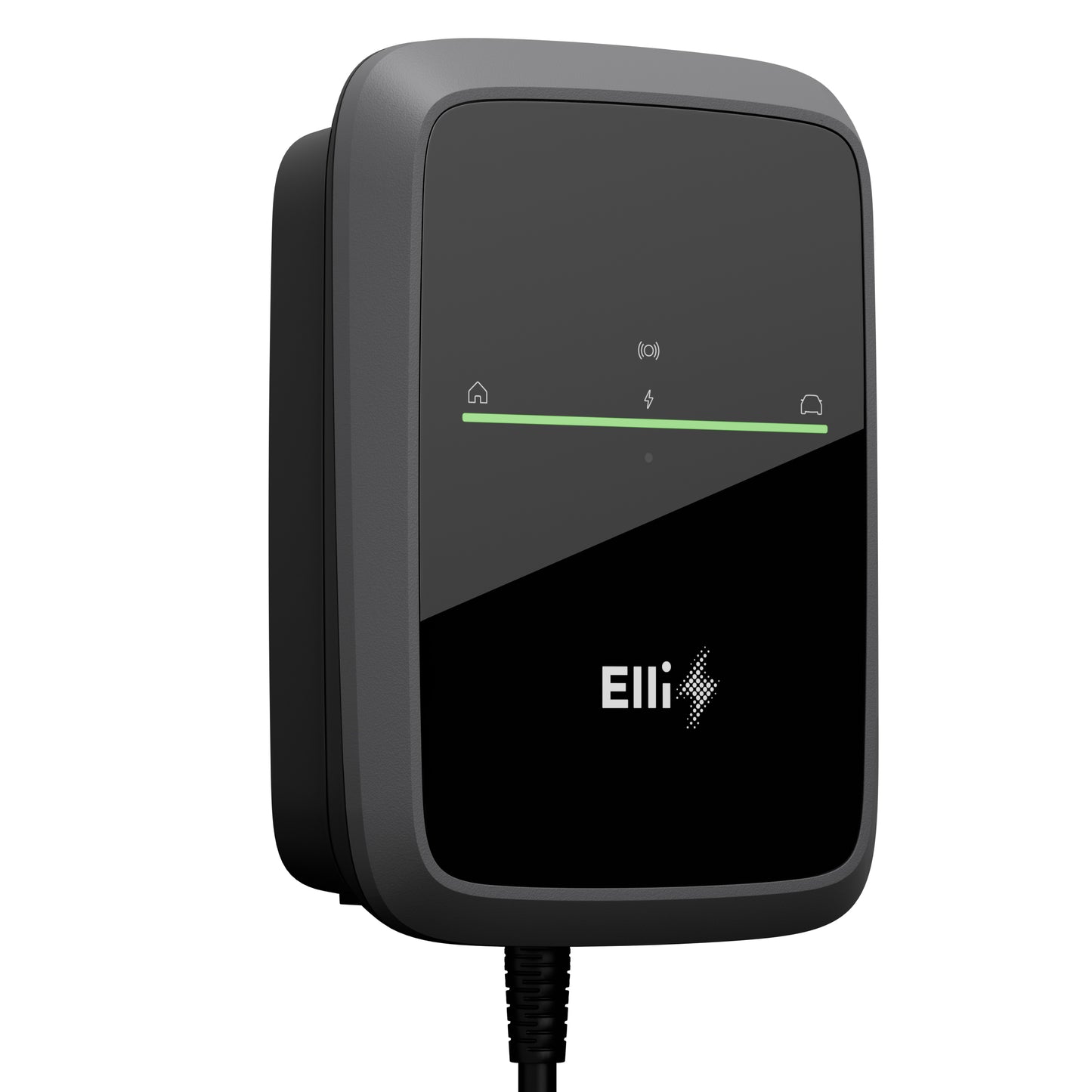

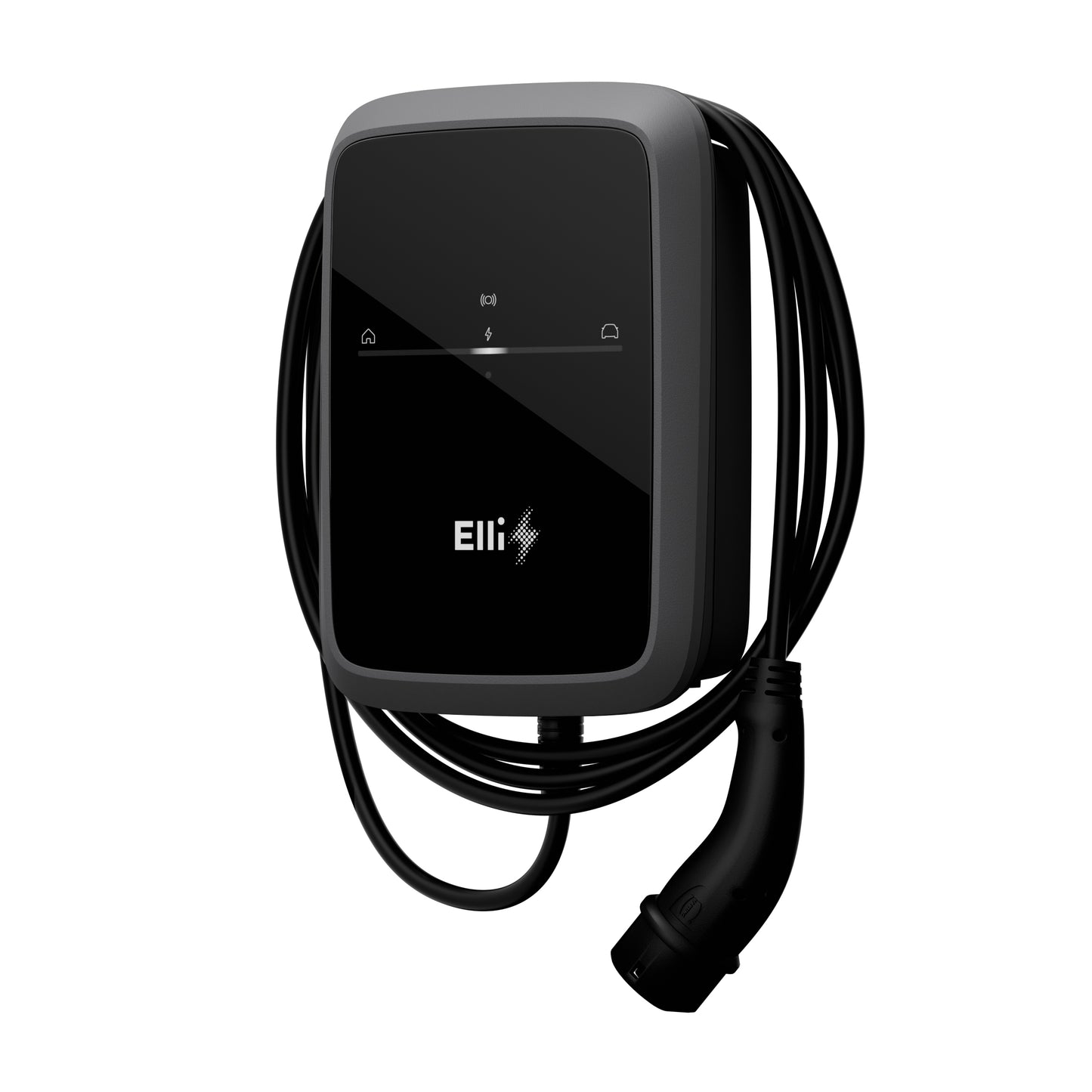

Elli Charger Connect 2, wallbox with integrated 7.5m cable

The Elli Charger Connect 2 is the smart wallbox of the latest A generation that impresses with up to 11 kW charging power, intelligent control and sustainable charging functions – perfect for cost-efficient and environmentally friendly electromobility.

Elli Charger Connect 2 – The intelligent wallbox for sustainable charging

Maximize your charging efficiency and reduce costs with the latest generation 2024 Elli Charger Connect 2. This AC wallbox offers a charging capacity of up to 11 kW and combines advanced features such as RFID authentication, dynamic load management, and intelligent charging functions.

Save up to 40% on charging costs
With the Charger Connect 2, you benefit from price-optimized charging. Use your home's solar energy or charge your electric car during off-peak hours to achieve maximum cost efficiency. Flexible options like solar forecast charging and dynamic phase switching allow the wallbox to adapt to your individual needs.

Seamless integration into your smart home

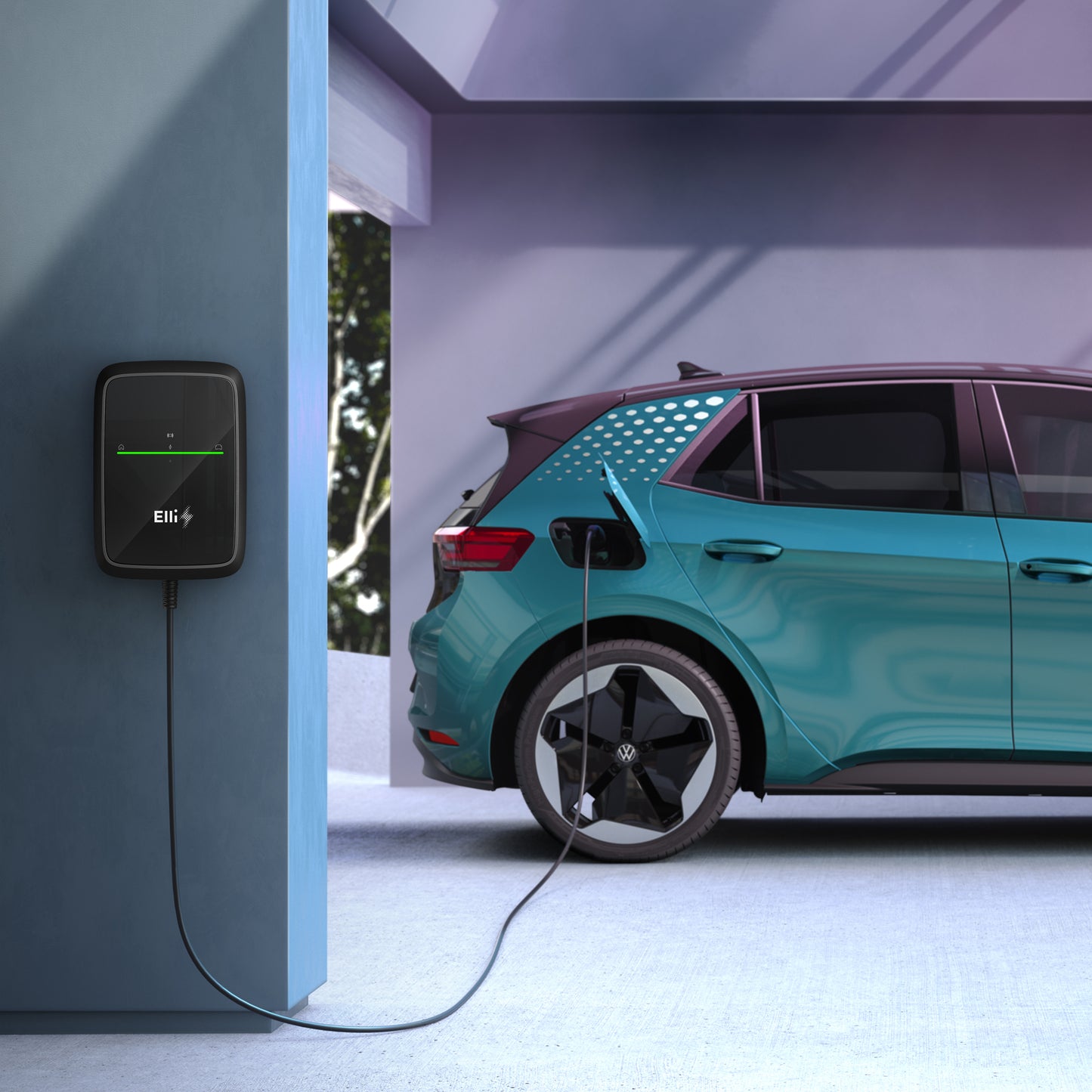

Connect the Elli Charger 2 effortlessly to your home and electric vehicle. The intelligent app control allows for automatic charging time scheduling and optimizes your energy consumption, ensuring your vehicle is ready when you need it. Thanks to LAN, WLAN, and an open backend, you stay perfectly connected, while regular software updates provide you with the latest features.

Greener and more efficient charging
Reduce your carbon footprint with sustainable charging options. The Charger Connect 2 supports surplus PV charging and dynamic phase management to maximize the use of solar power. Perfect for anyone who wants to contribute to environmentally friendly mobility.

Performance meets quality
With its robust polycarbonate construction and IK10 impact resistance rating, the wallbox is designed for demanding outdoor conditions (IP55). Thanks to German engineering and Volkswagen quality, the Charger Connect 2 offers a durable solution that can withstand any challenge.

-----

A notice:
Should you have any technical problems, questions or other concerns regarding the wallbox or its installation, please contact us. first contact Elli's support directly.. He can help you quickly and effectively. Please send Do not simply return supposedly defective devices to us, without having contacted Elli beforehand. In many cases, the problem can be solved through remote analysis or configuration assistance.

We can only offer limited support in this matter, as we also have to forward many requests to Elli first – which involves longer waiting times.

Elli Support contact details:

📞 Phone: 00800 3554 1111

✉️ E-mail: elli-support@elli.eco

-----

Technical data

feature	specification
Model	Elli Charger Connect 2
Product line	2nd Generation (2024)
Type of service	AC
Maximum charging power	11 kW
Rated current	6 A (1-phase) - 16 A (3-phase)
Nominal voltage	220-240 V, 380-415 V
Cable length	7.5 m

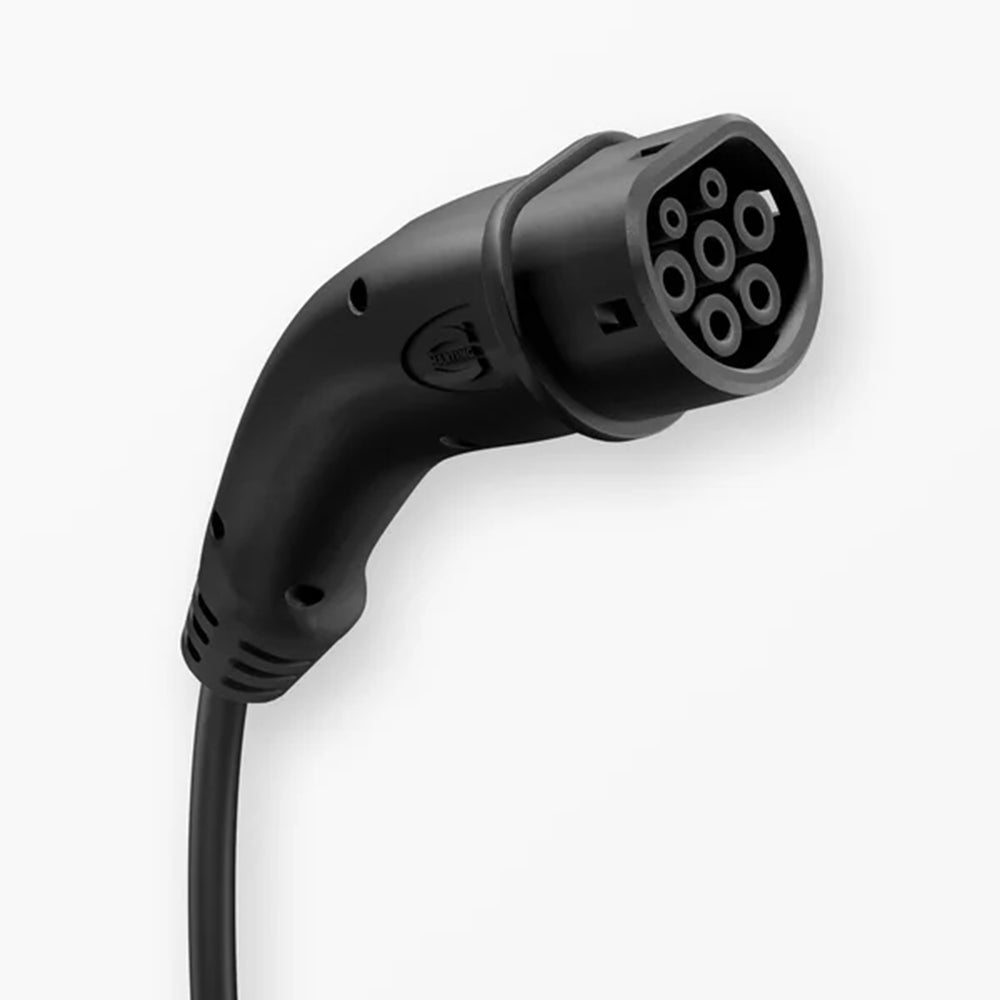

Plug type	Type 2
Network connections	LAN, WLAN
LTE	No
RFID card authentication	Yes
App control	Yes
Mounting kit	Including
Smart charging	Price-optimized charging, solar forecast charging, PV surplus charging, phase switching
Charge level indicator	Yes
measurement & Visualization	Yes
Energy meter (MID)	No
In accordance with calibration law	No
Dynamic load management	Yes (hub/satellite)
Dynamic phase switching	Yes
Impact resistance grade	IK10
Open Backend	Yes
Power outage protection	External hardware required, allows multiple chargers
Outdoor Ready	Yes (IP55)
Weight	6 kg
Dimensions	372 mm x 260 mm x 116 mm
DC fault current sensor	DC IΔN 6mA
Remote access via brand app	Yes
Remote maintenance software updates	Yes
Communication with vehicle	EN IEC 61851-1, ISO 15118-2
Number of charging points	1
Communication protocols	OCPP 2.0.1J, EEBUS, Modbus TCP/RTU
Operating temperature	-25° to +40° C
Maximum humidity	85% (non-condensing)
Rated frequency	50 Hz
Integrated residual current monitoring	No, an external RCD type A is required.
chassis	Polycarbonat
